Tug: Aceh Rat

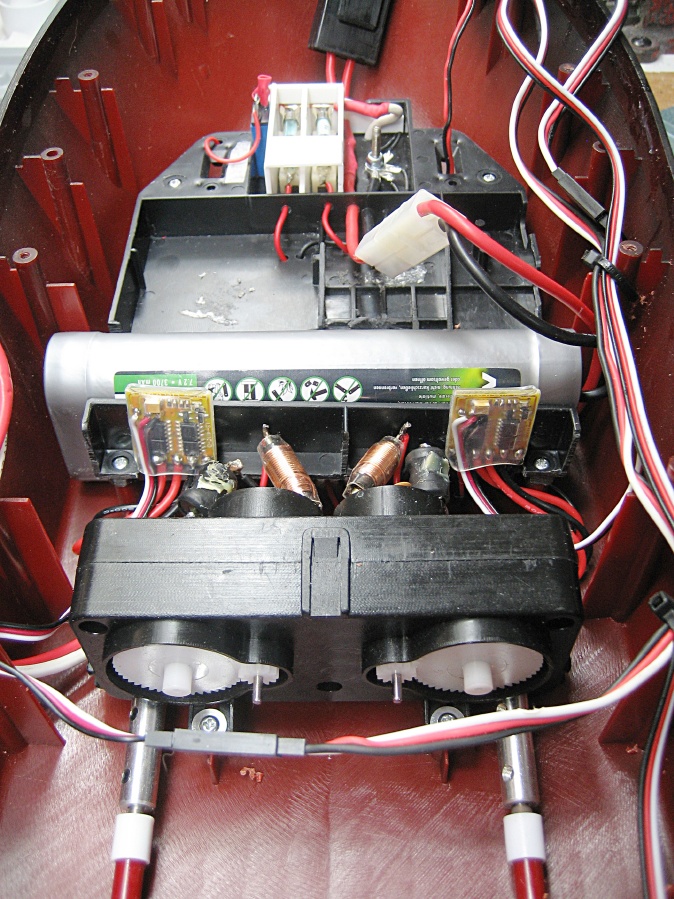

From the bottom (stern) up (forwards): Propshafts/couplings Gearbox with motors incorporated Filter chokes ESCs NiMH battery (7.2V, 3700mAh) Battery connector Two 2Amp motor/esc fuses with a 1A circuit breaker (blue) to port for the bec Main 10Amp battery fuse (black box at bow).
The signal wires for the escs and rudder servo are gathered together up the starboard side. |
