New control panels 3

New control panels 3

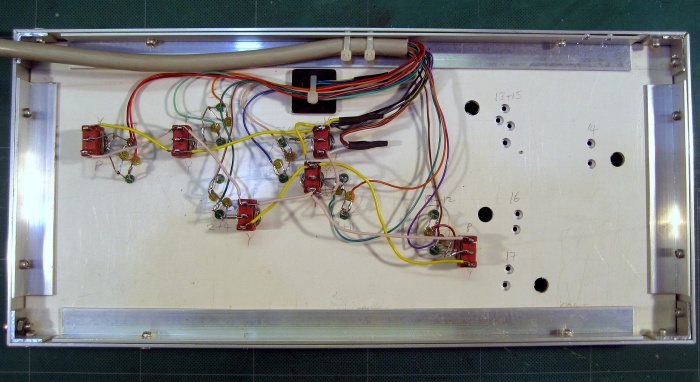

This panel is actually replacing two of the previous style and this picture shows the first one installed. The other one has four switches and the cable from it will enter at top right.
The wiring is a bit untidy as I was a bit constrained by the previous installation. (The cable was not long enough to cut back and start over.)

23(24)
