HO Locomotives
|
|
Atlas RS3 sound 6 |
 |

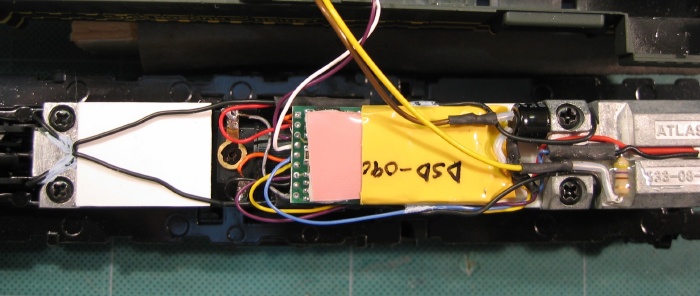

The decoder was glued to the rear flywheel cover and the speaker capacitor and headlight LED resistor were glued to the weight. Wiring was completed and joints shrinkwrapped. The rear headlight reuses the original filament lamp (just off the picture to the right). Four wires for speaker and front headlight go to a plug (seen in picture 4). The plug/socket occupy most of the space above the front flywheel cover. |
22(23)
